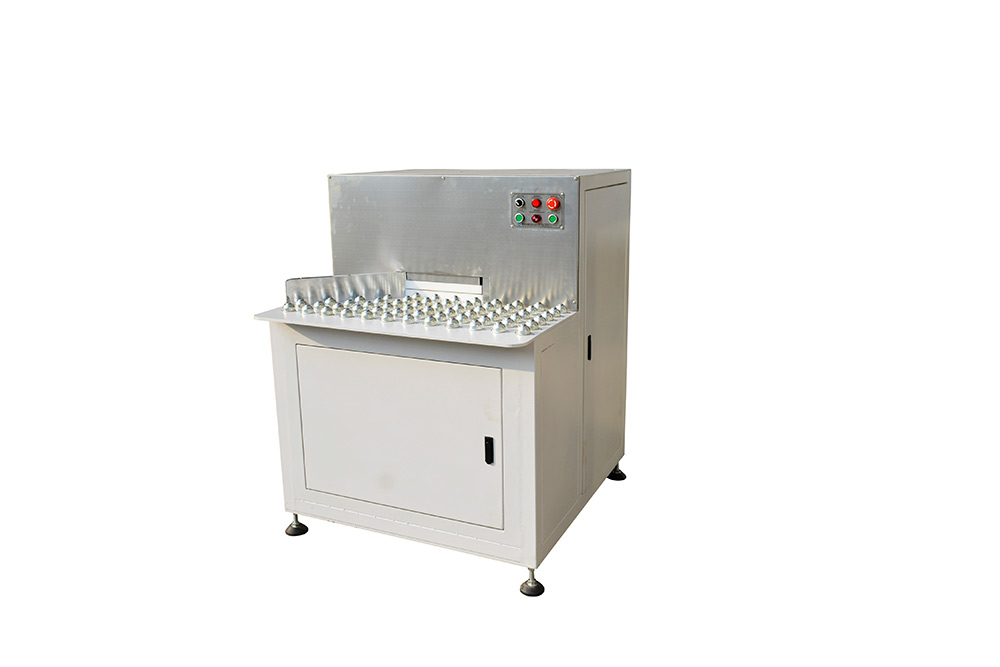

Horizontal left and right corner rounded machine SZ-856

Features: horizontal round corner, no cape after the round corner; PLC plus frequency conversion control, Taiwan brand slideway and cylinder quality is stable; The universal ball on the table is made of stainless steel, which is not easy to rust; Diamond combination cutter, solid and durable. Main parameters: 1. Plate thickness: 0.4-6mm 2. Production efficiency: Approve

Product introduction Layout Video introduction Equipment case

characteristic:

Horizontal round corner, no cape after the round corner;

PLC plus frequency conversion control, Taiwan brand slideway and cylinder quality is stable;

The universal ball on the table is made of stainless steel, which is not easy to rust;

Diamond combination cutter, solid and durable.

Main parameters:

1. Plate thickness: 0.4-6mm

2. Production efficiency: Approve * 100Panel/Min (1.6 thick)

3. Production size: MAX: 30“ × 30" MIN:5" × 5"

4. Power supply and power: AC380V/1150W

5. Air pressure and gas consumption: 5-7kgf/cm2

6. Overall dimension of equipment: L100 * W110 * H133cm
